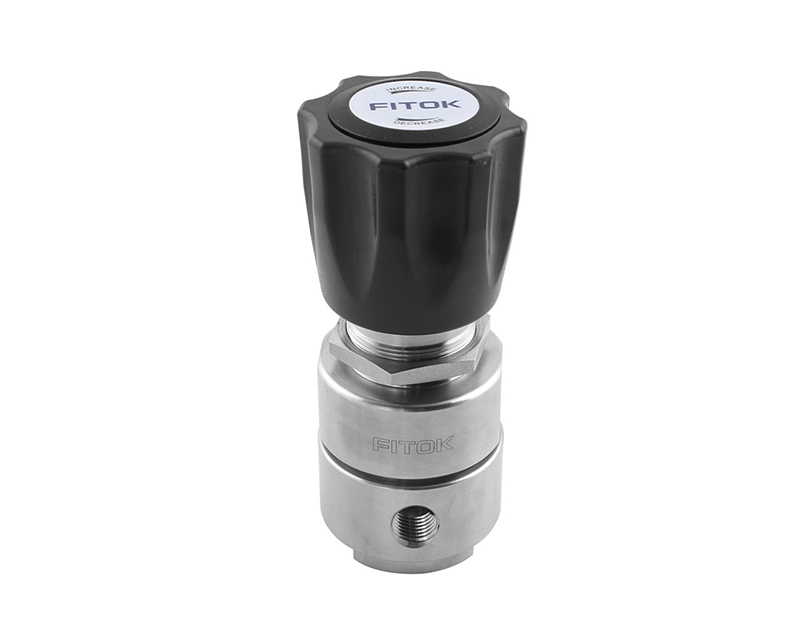

RDGC-6L-15H-1H-1H1-FNS4-PM-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 1500 psig (103 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 Female NPT, Round Handle, Installed with One Panel Nut, Cv 0.2, FITOK FC-02 Special Cleaning and Packaging Process

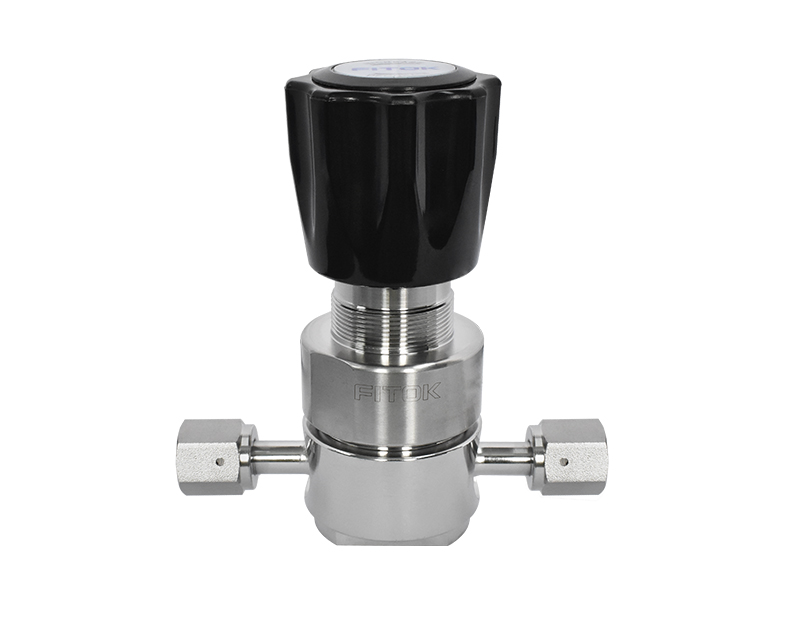

RDGC-6L-35H-150-1H1-FFR4-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 3500 psig (241 bar), Outlet Pressure 0 to 150 psig (0 to 10.3 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 in. Rotatable Female FR Metal Gasket Face Seal Fitting, Round Handle, Threaded Hole at the Bottom, Cv 0.09, FITOK FC-02 Special Cleaning and Packaging Process
RDGC-6L-15H-250-1H1-FFR4-BS-F3
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 1500 psig (103 bar), Outlet Pressure 0 to 250 psig (0 to 17.2 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 in. Rotatable Female FR Metal Gasket Face Seal Fitting, Round Handle, Installed with 2 Screws at the Bottom, Cv 0.2, FITOK FC-03 Ultra High Purity Process Specification

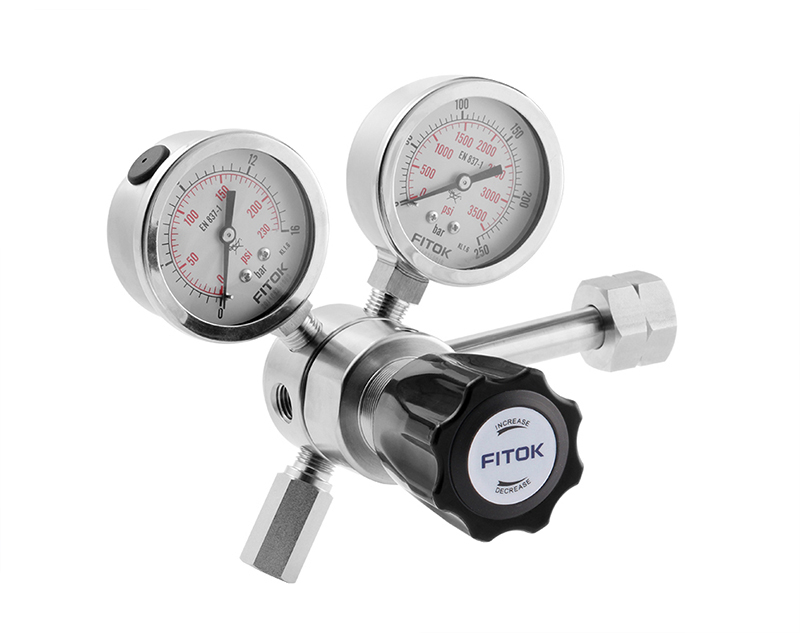

RDGC-6L-35H-1H-3R3-C330-FNS4-IBAP-OBR-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 3500 psig (241 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 3 Inlet & 3 Outlet, CGA330 Cylinder Connection × 1/4 Female NPT, Inlet and Outlet With Gauge (psi/bar), Auxiliary Inlet With Plug, Auxiliary Outlet With Relief Valve, Round Handle, Threaded Hole at the Bottom, Cv 0.09, FITOK FC-02 Special Cleaning and Packaging Process
RDGC-6L-35H-1H-3R3-C330-FNS4-IBAP-OBR-BS-F3
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 3500 psig (241 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 3 Inlet & 3 Outlet, CGA330 Cylinder Connection × 1/4 Female NPT, Inlet and Outlet With Gauge (psi/bar), Auxiliary Inlet With Plug, Auxiliary Outlet With Relief Valve, Round Handle, Installed with 2 Screws at the Bottom, Cv 0.09, FITOK FC-03 Ultra High Purity Process Specification
RDGC-6L-35H-1H-1H1-FNS4-PM-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 3500 psig (241 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 Female NPT, Round Handle, Installed with One Panel Nut, Cv 0.09, FITOK FC-02 Special Cleaning and Packaging Process
RDGC-6L-35H-150-1H1-FNS4-PM-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 3500 psig (241 bar), Outlet Pressure 0 to 150 psig (0 to 10.3 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 Female NPT, Round Handle, Installed with One Panel Nut, Cv 0.09, FITOK FC-02 Special Cleaning and Packaging Process
RDGC-6L-15H-1H-1H1-FFR4-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 1500 psig (103 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 in. Rotatable Female FR Metal Gasket Face Seal Fitting, Round Handle, Threaded Hole at the Bottom, Cv 0.2, FITOK FC-02 Special Cleaning and Packaging Process
RDGC-6L-15H-1H-1H1-FFR4-BS-F3
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 1500 psig (103 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 1 Inlet & 1 Outlet, 1/4 in. Rotatable Female FR Metal Gasket Face Seal Fitting, Round Handle, Installed with 2 Screws at the Bottom, Cv 0.2, FITOK FC-03 Ultra High Purity Process Specification
RDGC-6L-15H-1H-3R3-C330-FNS4-IBAP-OBR-F2
316L Stainless Steel, RDGC Series General Diaphragm Regulator, Max Inlet Pressure 1500 psig (103 bar), Outlet Pressure 0 to 100 psig (0 to 6.9 bar), -40°F to 165°F (-40°C to 74°C), 3 Inlet & 3 Outlet, CGA330 Cylinder Connection × 1/4 Female NPT, Inlet and Outlet With Gauge (psi/bar), Auxiliary Inlet With Plug, Auxiliary Outlet With Relief Valve, Round Handle, Threaded Hole at the Bottom, Cv 0.2, FITOK FC-02 Special Cleaning and Packaging Process
